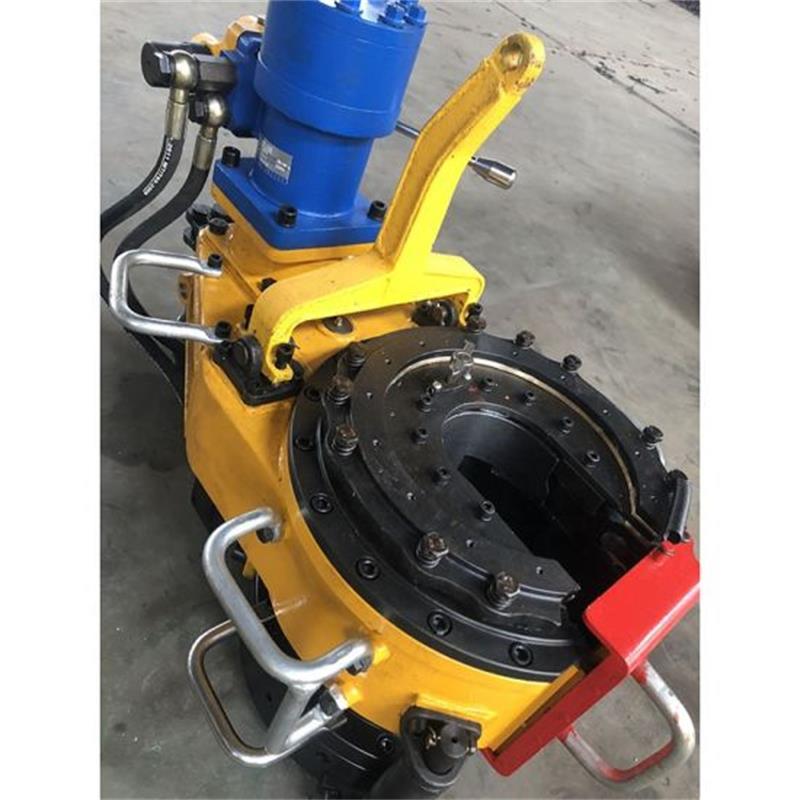

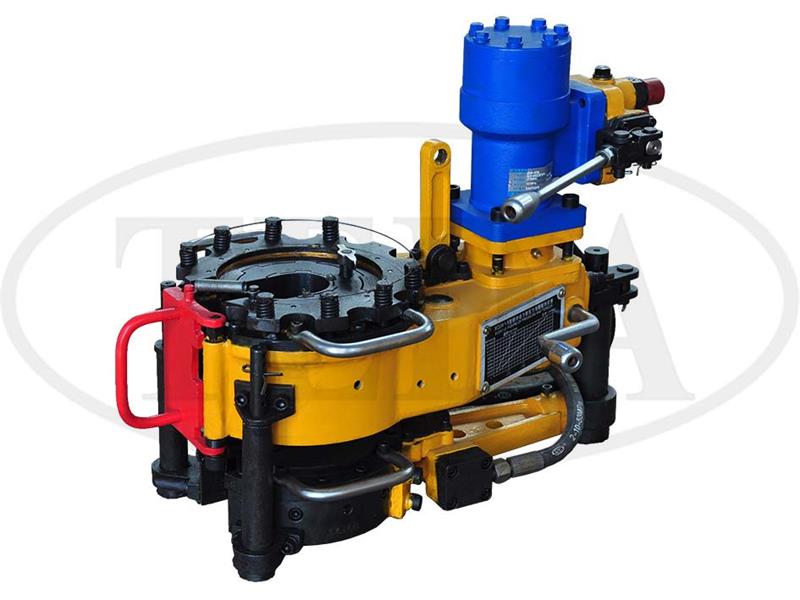

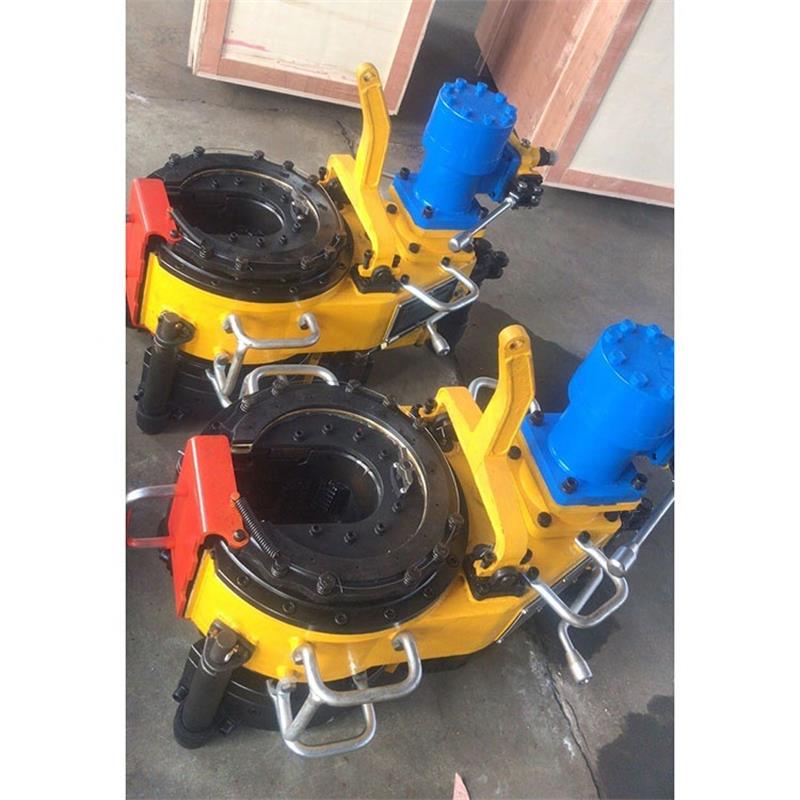

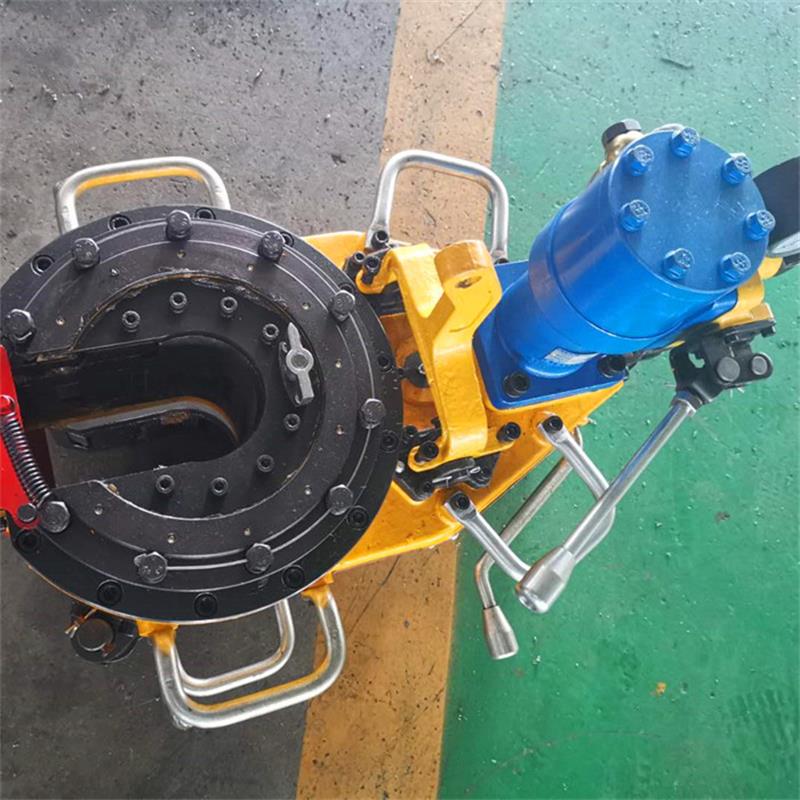

Sucker rod power tong is used for quick make-up /break out sucker rod in well service operations. These tongs are classified according to working load. We can supply these hydraulic power tongs with different working loads according to customer’s requirements.
| Technical Specification of Sucker Rod Power Tong | |||
| Specification | XQ28/1.8Y | XQ28/2.6Y | |
| Pipe Size Range Of Master Tong | mm | Sucker rod16,19,22,25 Tubing ɸ48-60 | ɸ16,19,22,25,28 |
| in | Sucker rod 5/8”-1 1/8” Tubing 1 7/8”-2 3/8” | 5/8”- 1 1/8” | |
Pipe Size Rang Of Backup Tong | mm | Sucker rod16,19,22,25,28 Tubing ɸ48-60 | ɸ16,19,22,25,28 |
| in | Sucker rod 5/8”-1 1/8” Tubing 1 7/8”-2 3/8” | 5/8”- 1 1/8” | |
| High Gear Rated Torque | kn.m | 0.7 | 1 |
| ft.lbf | 516 | 737.5 | |
| Low Gear Rated Torque | kn.m | 1.8 | 2.6 |
| ft.lbf | 1327.6 | 1918 | |
| High Gear Rated Speed | r/min | 104 | 98 |
| Low Gear Rated Speed | r/min | 40 | 32 |
| Rated Operation Pressure | Mpa | 10 | 10 |
| Psi | 1450 | 1450 | |
| Max. Flow | L/min | 65 | 80 |
| gpm | 17 | 21 | |
| Overall Dimension | MM | 543 x 334 x 404 | 670 x 383 x 490 |
| L × W × H | IN | 21.5 x 13 x 15.9 | 26.5 x 15 x 19 |
| Weight | Kg | 105 | 100 |
| Including Backup Tong | lb | 231 | 220 |
