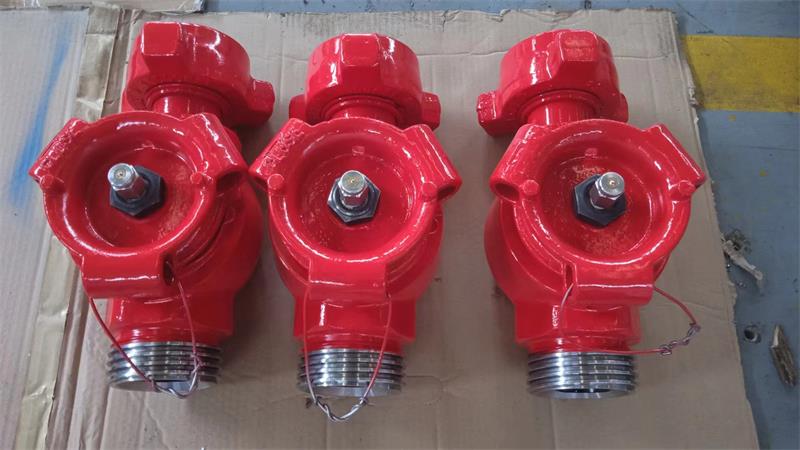

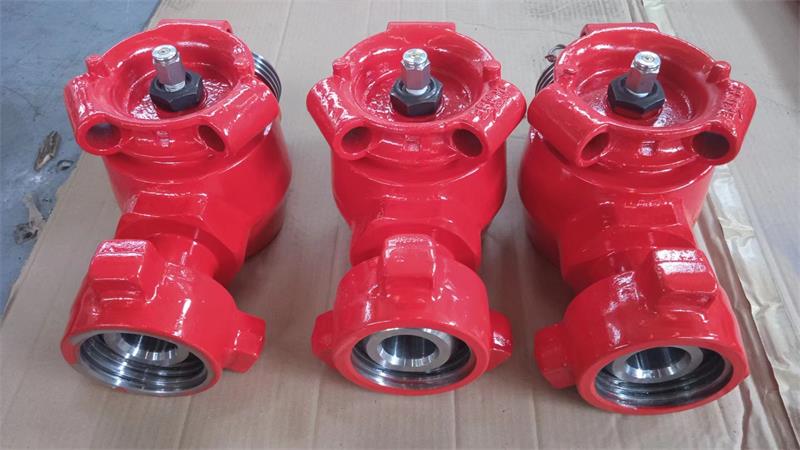

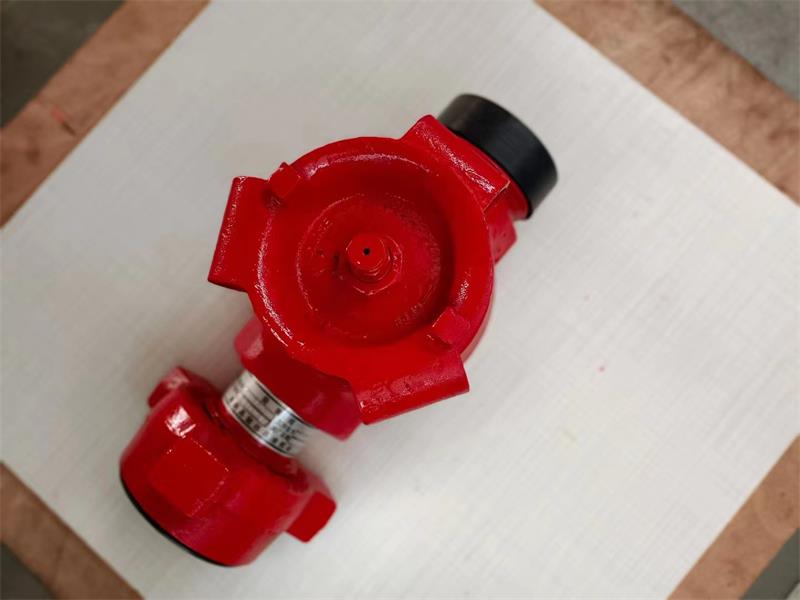

The FIG 1502 plug valve is a necessary part, and it is applied for the high pressure manifold for the cementing and fracturing operations in oil field and also is suitable to control over the similar high pressure fluid.
The FIG 1502 plug valve consists of the valve body, plug cap, plug and etc.
| Plug Valve-Union Connection | ||||||||
| Product Name | Size | Working Pressure | Dimension(mm) | Type of Connection | Actuator | Weight | ||
| L | A | H | ||||||
High Pressure Plug Valve-Union Connection | 2" | 42Mpa | 353 | 88 | 225.5 | FIG602(M×F) | Mannual | 42.2 |
| 3" | 432 | 103 | 254 | FIG602(M×F) | Mannual | 108 | ||
| 2" | 70Mpa | 353 | 88 | 225.5 | FIG1002(M×F) | Mannual | 42.2 | |
| 3" | 432 | 103 | 254 | FIG1002(M×F) | Mannual | 108 | ||
| 2" | 105Mpa | 353 | 88 | 225.5 | FIG1502(M×F) | Mannual | 42.2 | |
| 353 | 88 | FIG1502(M×F) | Pneumatic | 42.2 | ||||
| 353 | 100 | 409 | FIG1502(M×F) | Hydraulic | 84 | |||
| 3" | 432 | 103 | 254 | FIG1502(M×F) | Mannual | 108 | ||
| 432 | 103 | 630 | FIG1502(M×F) | Turbine Bar | 131 | |||
| 432 | 103 | FIG1502(M×F) | Pneumatic | 141 | ||||
| 432 | 103 | FIG1502(M×F) | Hydraulic | 153 | ||||
| Plug Valve-Threaded Connection | ||||||||
| Product Name | Size | Working Pressure | Dimension(mm) | Type of Connection | Actuator | Weight | ||
| L | A | H | ||||||
High Pressure Plug Valve-Threaded Connection | 2" | 42Mpa | 218 | 76.5 | 198.3 | 2" LP Pin | Mannual | 37 |
| 3" | 316 | 110 | 314.5 | 3" LP Box | Mannual | 42.2 | ||
| Mannual | 108 | |||||||
| 2" | 105Mpa | 353 | 88 | 225.5 | FIG1502(M×F) | Mannual | 42.2 | |
| 353 | 88 | FIG1502(M×F) | Pneumatic | 42.2 | ||||
| 353 | 100 | 409 | FIG1502(M×F) | Hydraulic | 84 | |||
| 3" | 432 | 103 | 254 | FIG1502(M×F) | Mannual | 108 | ||
| 432 | 103 | 630 | FIG1502(M×F) | Turbine Bar | 131 | |||
| 432 | 103 | FIG1502(M×F) | Pneumatic | 141 | ||||
| 432 | 103 | FIG1502(M×F) | Hydraulic | 153 | ||||
