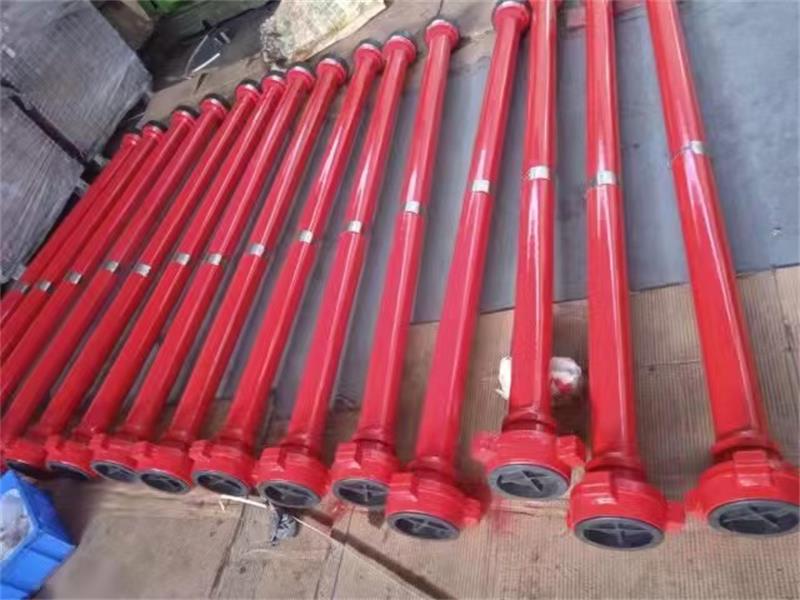

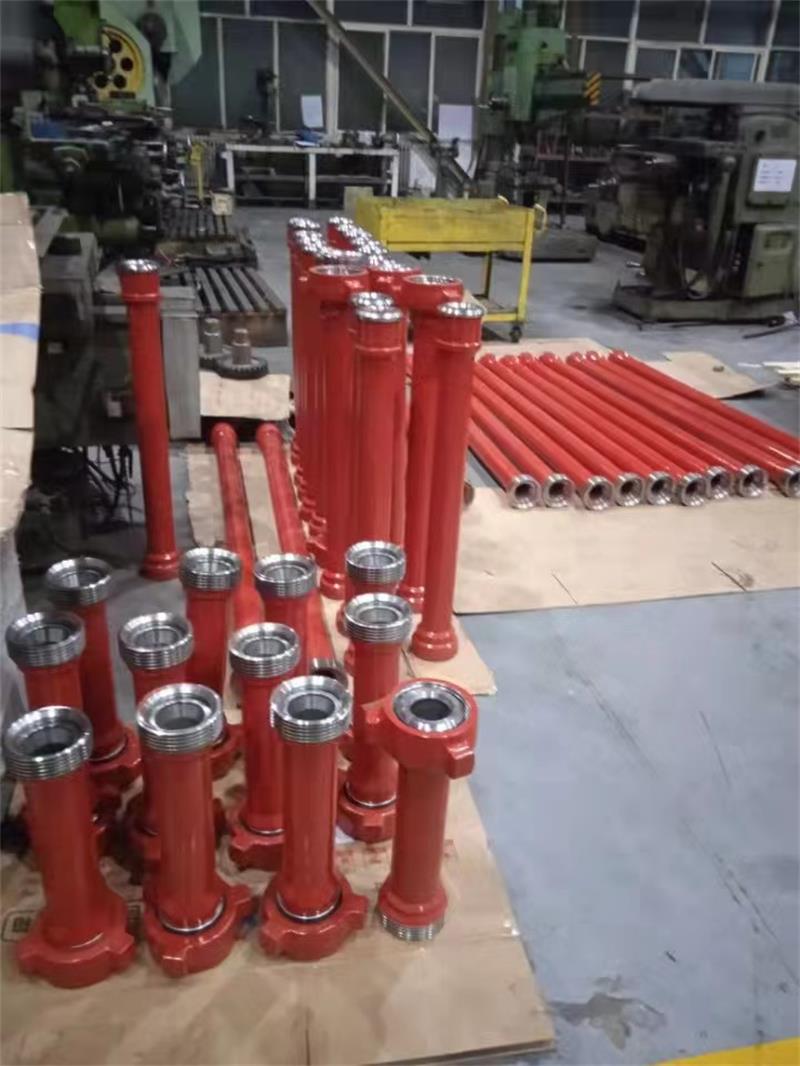

1502 Pup joints are forged from superior alloy steel with partial heat treating process, which are widely used for transporting high pressure flow in fracturing line, cementing line and NACE Service. Pup joints have been optimized for minimum weight and size to extend service life, easy to transport and install on site.
High pressure straight pipe have four different types: pressure seal, non-pressure seal, integral type and welding type. We can provide 1"~4" and 1000psi to 15000psi(7MPa to 105MPa) straight pipes.
| Specification of High Pressure Straight Pipe | ||||||
| Product Name | Size | Working Pressure | Length(MM) | Type of Connection | Weight(kg) | |
| L | 2" | 3" | ||||
High Pressure Straight Pipe | 2" 3" | 42Mpa | 500 | FIG 602(F×M) FIG 602(F×F) FIG 602(M×M) | 8.8 | 18.7 |
| 1000 | 15 | 32.4 | ||||
| 1500 | 21.4 | 46.1 | ||||
| 2000 | 27.8 | 59.8 | ||||
| 2500 | 34.2 | 73.5 | ||||
| 3000 | 40.6 | 87.2 | ||||
| 4000 | 53.4 | 114.6 | ||||
| 5000 | 66.2 | 142 | ||||
| 6000 | 79 | 170 | ||||
| 2" 3" | 70Mpa | 500 | FIG 1002(F×M) FIG 1002(F×F) FIG 1002(M×M) | 8.8 | 18.7 | |
| 1000 | 15 | 32.4 | ||||
| 1500 | 21.4 | 46.1 | ||||
| 2000 | 27.8 | 59.8 | ||||
| 2500 | 34.2 | 73.5 | ||||
| 3000 | 40.6 | 87.2 | ||||
| 4000 | 53.4 | 114.6 | ||||
| 5000 | 66.2 | 142 | ||||
| 6000 | 79 | 170 | ||||
| 2" 3" | 105Mpa | 500 | FIG 1502(F×M) FIG 1502(F×F) FIG 1502(M×M) | 8.8 | 18.7 | |
| 1000 | 15 | 32.4 | ||||
| 1500 | 21.4 | 46.1 | ||||
| 2000 | 27.8 | 59.8 | ||||
| 2500 | 34.2 | 73.5 | ||||
| 3000 | 40.6 | 87.2 | ||||
| 4000 | 53.4 | 114.6 | ||||
| 5000 | 66.2 | 142 | ||||
| 6000 | 79 | 170 | ||||
