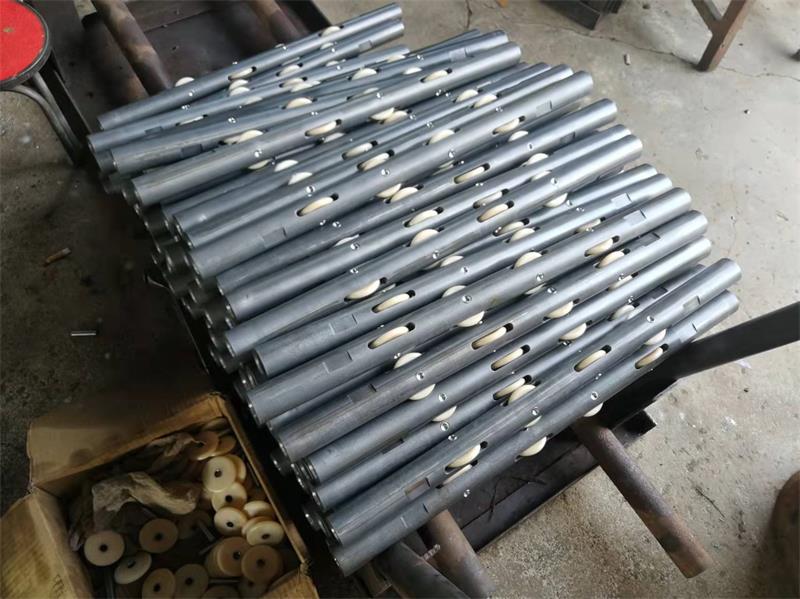

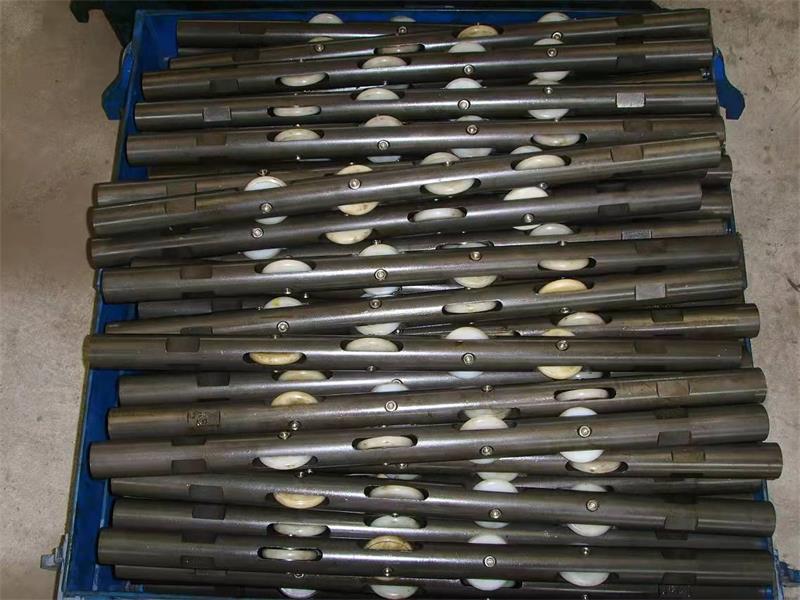

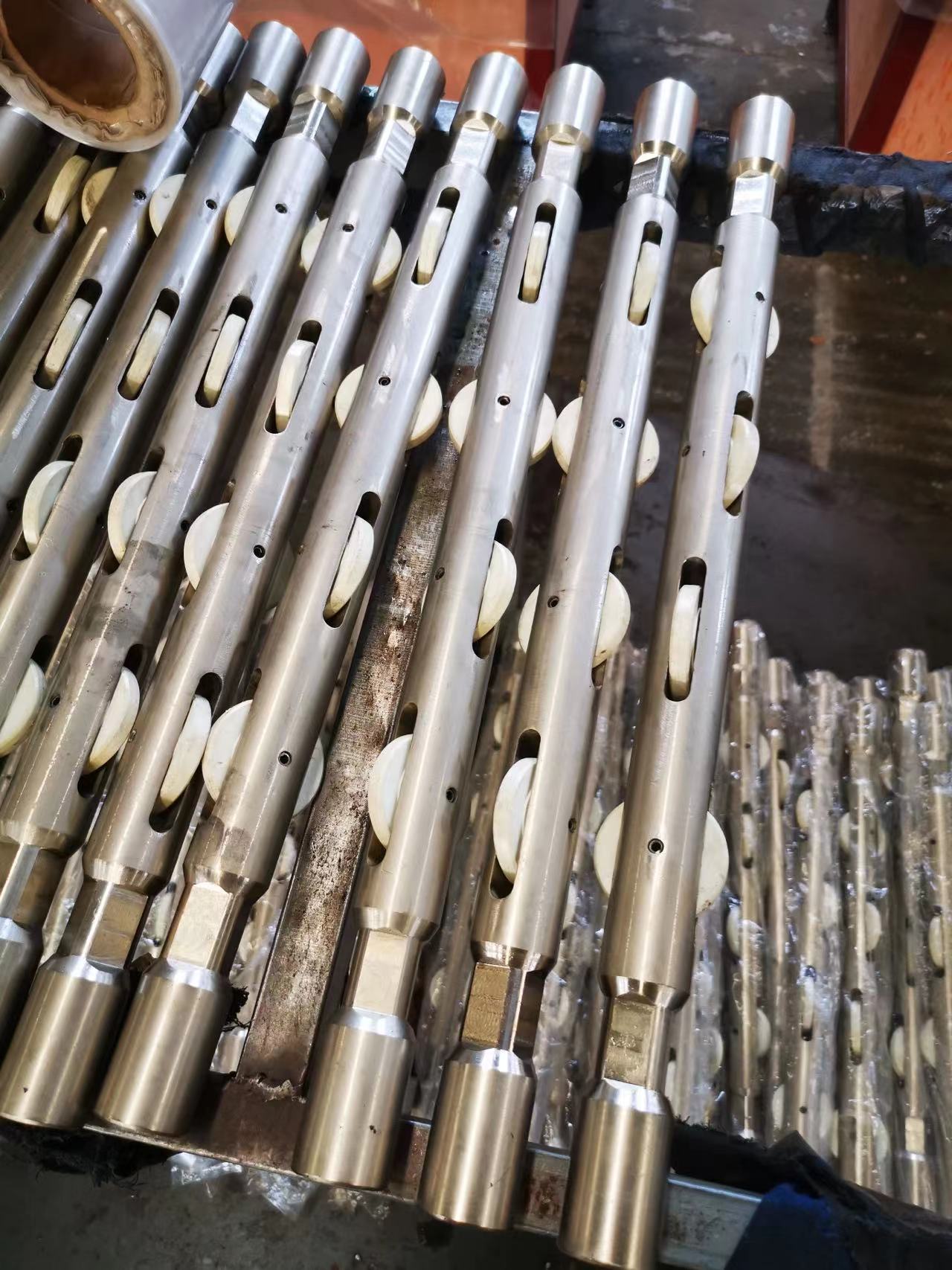

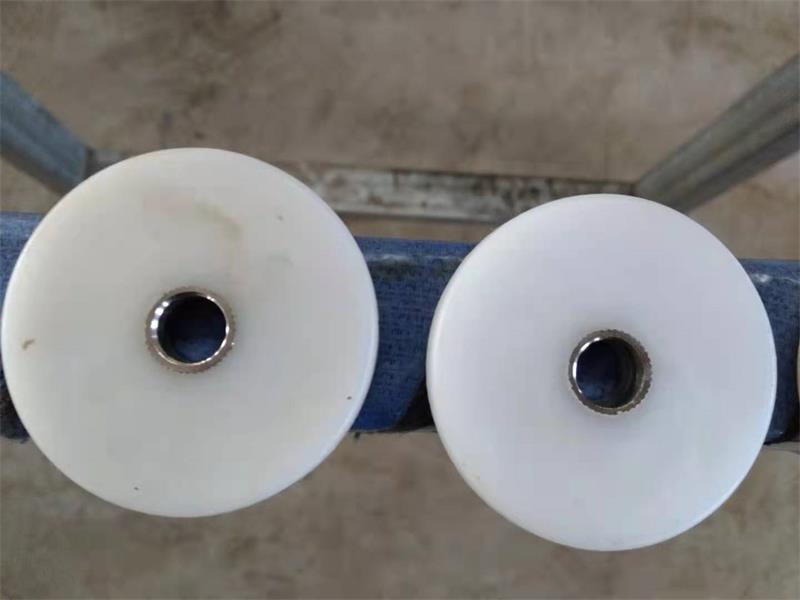

Wheeled Rod Guide Coupling is made from alloy steel or carbon steel, which is a special tool to connect with sucker rod to reduce the abrasion between sucker rod and tubing. Its special design can improve the sucker rod string working efficiency and life. We also call it as Roller Rod Guide Coupling.
| Components of Single Wheeled Rod Guide | |||
| NO | COMPONENT NAME | QTY | MATERIAL |

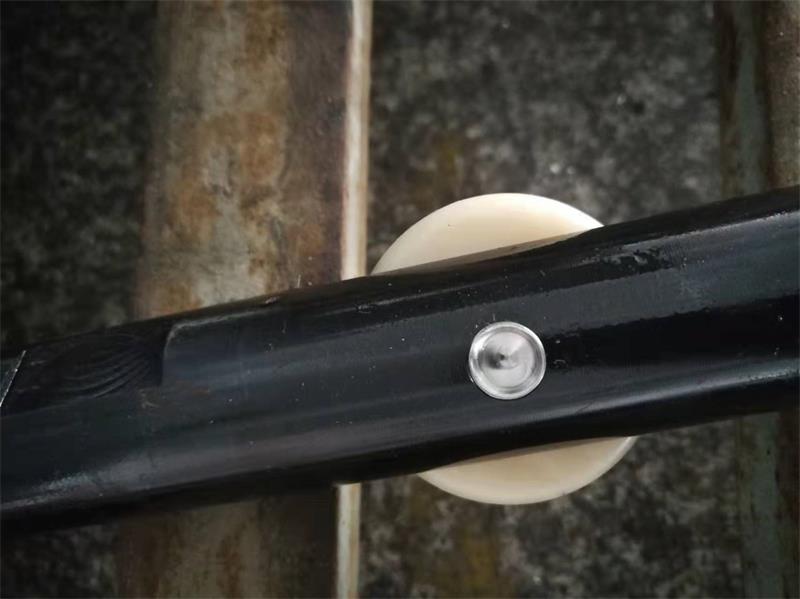

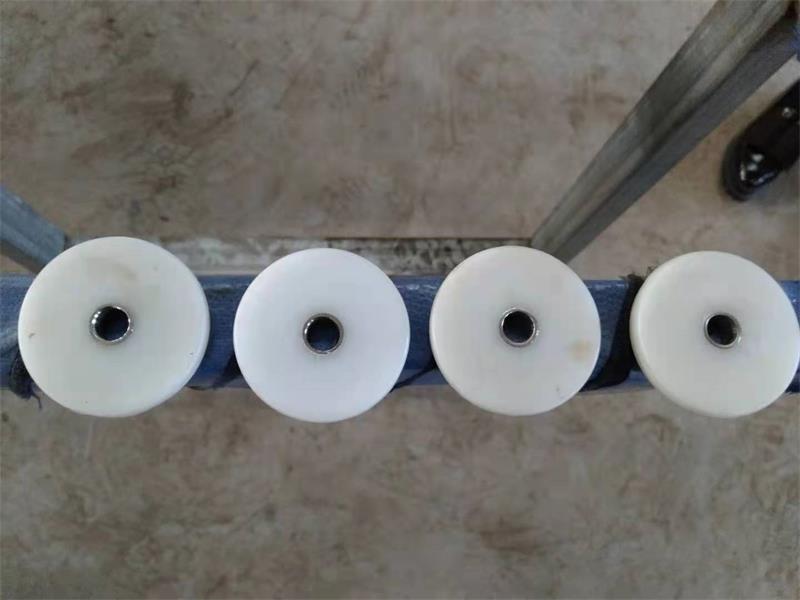

| 1 | Wheel | 4 | Nylon 66 |
| 2 | Roll pin | 4 | Stainless steel |
| 3 | Coupling body | 1 | 35CrMo or other special steel |
| Wheeled Rod Guide Parameters | |||
| Application | Dimension(In.) | ||
| Diameter | Length | Length of the Groove | |
| 5/8”Rod/2-3/8”TUBING | 1.5 | 27 | 1.8 |
3/4" Rod/2-3/8” TUBING | 1.5 | 27 | 1.8 |
| 5/8”Rod/2-7/8”TUBING | 1.5 | 27 | 2.25 |
| 3/4”Rod/2-7/8”TUBING | 1.5 | 27 | 2.28 |
| 7/8”Rod/2-7/8”TUBING | 1.625 | 27 | 2.28 |
1”Rod/2-7/8” TUBING | 2 | 29 | 2.28 |
| 3/4”Rod/3-1/2”TUBING | 1.5 | 31 | 2.75 |
7/8”Rod/3-12” TUBING | 1.625 | 31 | 2.75 |
1”Rod/3-1/2” TUBING | 2 | 31 | 2.75 |
